 CCTV products: 8 Channel Power-Video-PTZ PVD 8Channel Power Video BALUN Transceiver/HUB |
|
|
HT9088PV HT9088PVD |
HT9088PV Power Video Balun Transceiver
HT9088PVD Power-Video-PTZ Transceiver
8 Channel Power Video PTZ Data (PVD) BALUN Transceiver
'HUM-BARs' Rejective Power Video PTZ (PVD) BALUN Transceiver - Four Cameras solution
Common Mode Choke, Power Noise Rejection, Low Line EMI Emissions
HT988PV-HB Video Power HUB w/ Power Path
HT988PVD-HB Video Power Data HUB
LED Power Indicator Over Current Protection Power Path Loop Out
Surge Lightning Immunity Power Grounding Terminal
|
|
| Description |
8 CH CCTV Video Balun allows 8 base-band composite video signals and Power supply as well Data to be transmitted via unshielded twisted pair (UTP) cable for more versatile cabling.
The 8 CH CCTV Balun can be used with CCTV power & data thru balun or CCTV Power converter for wide applications, and allow you to eliminate more expensive coaxial cables, including coupling signals from remote video cameras to display systems, video capture, security and surveillance monitoring applications.
HT9088PV is a Power Video (PV) Balun Transceiver, and HT9088PVD is a Power-Video-PTZ Data (PVD) Transceiver |
| Specification |
Environment: CCTV equipment for security and surveillance video, data, and power transmission.
Devices: CCTV cameras, monitors, multiplexers, digital video recorders (DVR) and other CCTV equipment.
Bandwidth: Video DC to 8MHz
Maximum input: 1.0Vp-p
Insertion loss: Max. 2dB per pair over the frequency range from DC to 8MHz
Return loss: Greater than 15dB over the frequency range from DC to 8MHz
Cross Talk: Greater than 40dB over the frequency range from DC to 8MHz
Common mode rejection: Greater than 40dB at 8MHz
Maximum video distance: Color: Cat.5 2230ft (680 Meter), Monochrome: Cat.5 2550ft (780 Meter), No qualified cable might decrease the transmission distance.
Maximum power distance: Max. Distance @ 24Vac via UTP Cat5 cable (24 AWG):
5VA .......... 558ft (170m) 10VA ........... 279ft (85m) 20VA .............. 141ft (43m) 30VA ................. 92ft (28m)
Data: PTZ by RS485. It can be transmitted up to 1000m over cat.5 UTP cable
Cable-UTP: Cat 5 or better, 24 gauge typical, Max. capacitance :20pf/ft, Attenuation: 6.6dB/1000ft at 1MHz
Cable-Coax: Impedance: 75 ohm at 1MHz, Max. 25ft. of coax allowed per end to end link
Connectors: Screw Terminal Block, BNC Male, DC jack and a two pins of Data terminal block, one pin for GND connection.
Polarities of each channel:
Video 1+/2-, Power thru 3+/4-, Data thru 5+/6- For Screw Terminal Block connector
Video 8+/7-, Power thru 1,3+/2,6-, Data thru 4+/5- (RJ45 Jack for Optional OEM/ODM)
Four channels share the same Power and Data input
Impedance: 75 ohm to 100 ohm (or 75ohm to 120ohm on request)
Power Supply: 12V-60V DC/AC (Isolated for AC power)
Power Backup: Centralized power management through UPS at monitor?site, no worry for power blackout.
Temperature: Operating temp. 0 to 55 C, Storage temp. -22 to 85C, Humidity up to 95%
Dimension: 162*102*32mm, connectors are included.
Weight: 800g for HT9088PV, and 900g for HT9088PVD
|
|
| System Configuration Diagram |

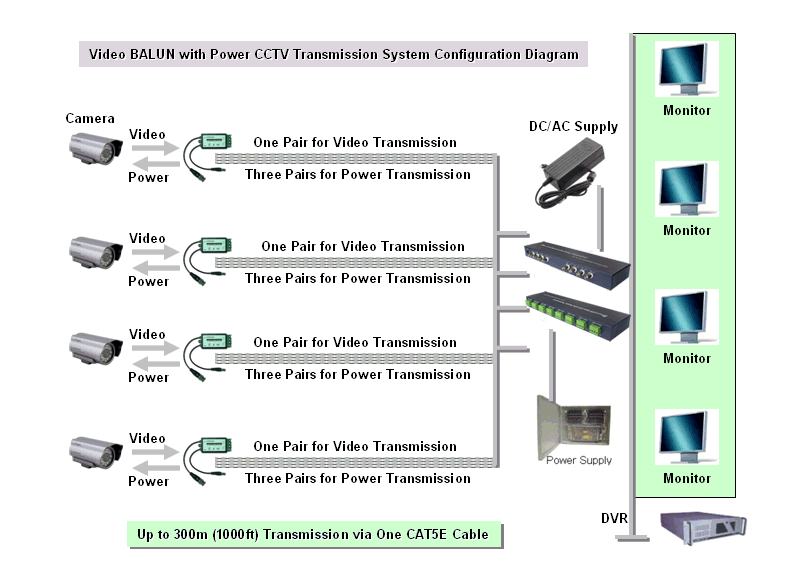

HT9011VPD-M HT9001PVD HT944PVD-HB and 4/8/16Channel Passive / Active Balun Transceiver Diagram |
 |

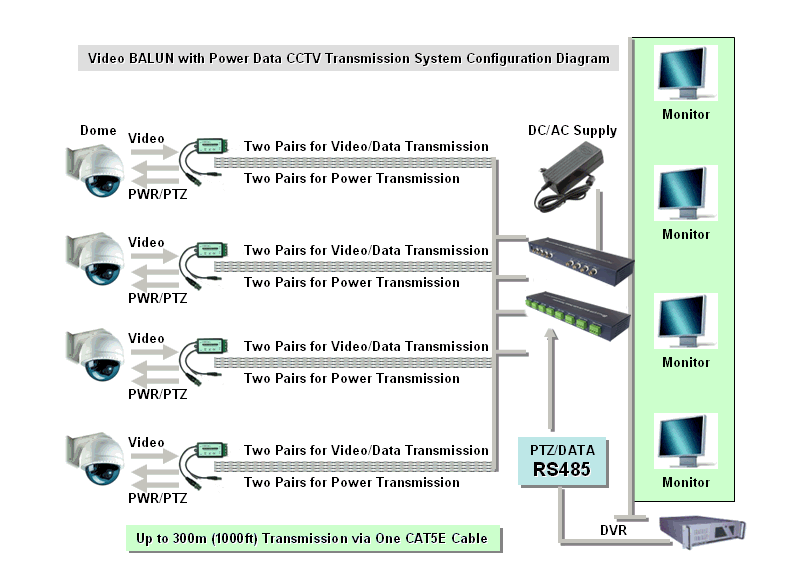

HT9011VPD-F and HT9088PVD HT9088PV Diagram
|
 |
| |
 |
| |
| |
| |
| | |
