Website Position: Homepage  Products Passive Balun Transceiver Video Balun with Power & Data - PVD Transceiver / Video Power Balun Transceiver - RJ45 Jack |
| |
 Video Balun Transceiver with Power and Data ( CCTV via Unshield Twist Pair Cable) |
| |
|
BALUN Transceiver Product Catalog (PDF Download)
|
|
|
|
| |
|
|
HT9011VP-F |
HT9011VP-M |
|
|
HT9001PV-FR |
HT9001PV-MR |
|
|
HT9001PVD-F |
HT9001PVD-M |
| |

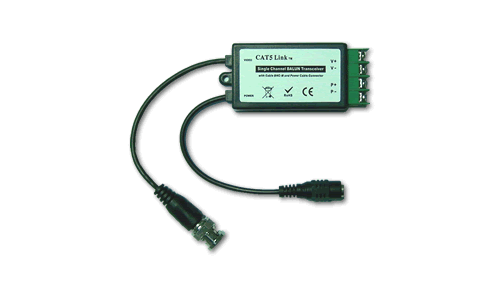

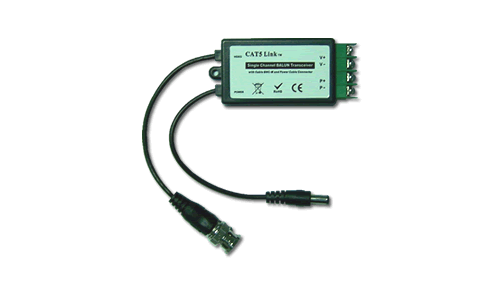

HT9011VPD Video Balun Transceiver with Power & Data - Screw Terminal
'HUM-BARs' Rejective Passive Video POE Transceiver with 120mm Cable
Common Mode Choke, POE Line Noise Rejection, Low Line EMI Emissions
Big terminal screw block for CAT5 cable, solid connection than unsolidified RJ45 Jack
Direct screw terminal connection via complex CAT5 cable to RJ45 connector building
HT9001PVD-R Video Balun Transceiver with Power & Data - RJ45 Jack
'HUM-BARs' Rejective Passive Video POE Transceiver with 120mm Cable
Common Mode Choke, POE Line Noise Rejection, Low Line EMI Emissions
RJ45 Jack / Connector for CAT5 Cable Compact Installation
'HUM-BARs' Rejective Passive Video Transceiver with mini BNC/RCA Cable |
| |
Operation Manual Download |
| |
Specification
|
-
Big terminal screw block for CAT5 cable, solid connection than unsolidified RJ45 Jack
Direct screw connection instead of complex CAT5 cable to RJ45 connector building (HT9011VP)
-
RJ45 jack for CAT5 cable, compact installation (HT9001PVD/HT9001PV)
-
Video/ power/data transmission via one UTP CAT5 cable. (HT9001PV)
-
Video/ power transmission via one UTP CAT5 cable. (HT9011VP)
-
Over 10-20% wire costs saved.
-
Full-motion CCTV video at distances up to 2000ft B/W(600m), 1500ft Color (400m)
-
Building video and power filter and loop termination circuit (HT9011VP/9001PV-R)
-
'HUM-BARs' rejective video POE BALUN transceiver
-
Outstanding interference rejection and transient surge protection.
-
Building in lightning protection gas tuber for both video and power/POE channels
-
Common mode coil choke for power- POE line noise rejection, low power noise emissions
-
Male BNC with 120mm coaxial cable allows connection directly to the camera or DVR.
-
Male and Female power connector with 120mm cable allows POE transmission.
-
12Vto 48VDC/ACpower from HT9011VP-M/HT9011VP-MR and output from HT9011VP-F/HT9001PV-FR.
-
Up to 3,000ft (1km) with active receiver or hub.
-
For more information, please contact with authorized distributors.
|
| |
Specification
|
Attenuation
DC to 6 Mhz: 1.5 dB max
Common-mode rejection
Video:15KHz to 5 Mhz: 60 dB typ
Power:10KHz to 100Khz: 60 dB typ
Return loss rjection
Video: Over 18dB @1Mhz
Impedance
Coax Cable, Male BNC75 ohms
UTP/CAT5 Cable, Screw Terminal 100 ohms (HT9011VP)
UTP/CAT5 Cable, RJ45 100 ohms (HT9001PV-R/HT9001PVD)
Wire Type
Network Wiring: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) per signal
Category Type: Cat 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 26 ohms max
Differential Capacitance: 19 pF/ft max
Wire Length: Camera to monitor including coax, 1,000 ft (300m) , up to 2000ft max (600m) B/W signal
Connector Interfaces
Video: Male BNC connector with 120mm coxial cable
Environmental
Temperature: 0 to +50°C
Humidity (non-condensing): 0 to 95%
ESD Susceptibility (200 pf probe) : 20 KV
Mechanical
Dimensions: 45*25*23mm with 120mm coxial, data and power female/male mini cable
Weight: 80g
Material: Black ABS
Mounting: No needed
Package: Paper Box
|
Product Information & Application Diagram
|
|
|
330ft/100m CAT5 Cable Extension System Configuration Diagram
|
|
|
|
|
|
